ST38FSR
Appleton®* Actual product may vary from image

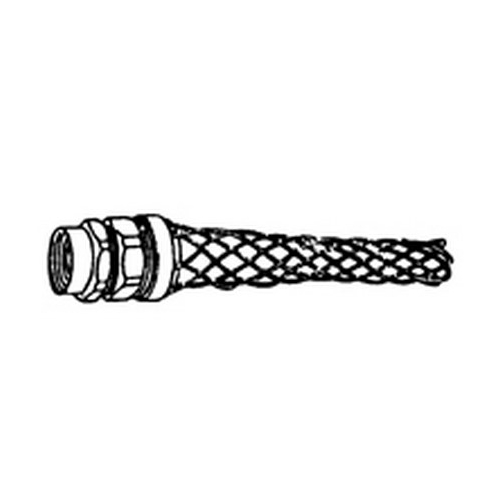

Liquidtight Flexible Conduit Connector and Wire Mesh, Trade Size 3/8 Inch, Connector Type Straight Female, Connector Material Zinc Electroplated Steel, Throat Type Non-Insulated, Mesh Material Stainless Steel, Standard Package 20, Approval UL 514B, CSA C22.2, Used On Liquidtight Flexible Metal Conduit, Applicable Standard NEMA FB-1, Application Commercial, Size 1.13 Inch Dia, Thread Length 0.63 Inch
Details
MFG PART #:ST38FSR
McMc Part #:EGSMST38FSR
UPC #:781381501446
Inventory
$ C
Details
MFG PART #:ST38FSR
McMc Part #:EGSMST38FSR
UPC #:781381501446
Inventory
Attributes
Features
Documentation
Attributes
Brand:Appleton®
Angle:Straight
Cable Openings:0.69 to 0.71 in
Dimensions:1.44 in L x 1.13 in H
Finish:Zinc Electroplated
Material:Steel
Series:ST Series
Suitable For Use With:Liquid Tight Flexible Metallic Conduit
Trade Size:3/8 in
Type:Concretetight Non-Insulated Throat Oiltight Raintight
Features
| Unique long ferrule with more pronounced threads provides over four times UL pull out requirements |
| Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground |
| Stainless steel wire mesh prevents pull out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection |
| Suitable for wet locations |
