STL360W
RAB Lighting* Actual product may vary from image
Outdoor Sensors Stealth 360 Sensor 1000W 120V White
Details
MFG PART #:STL360W
McMc Part #:RABESTL360W
UPC #:019813761213
Inventory
$ E
Details
MFG PART #:STL360W
McMc Part #:RABESTL360W
UPC #:019813761213
Inventory
Attributes
Features
Documentation
Attributes
Brand:RAB Lighting
Amperage Rating:8 A
Color:White

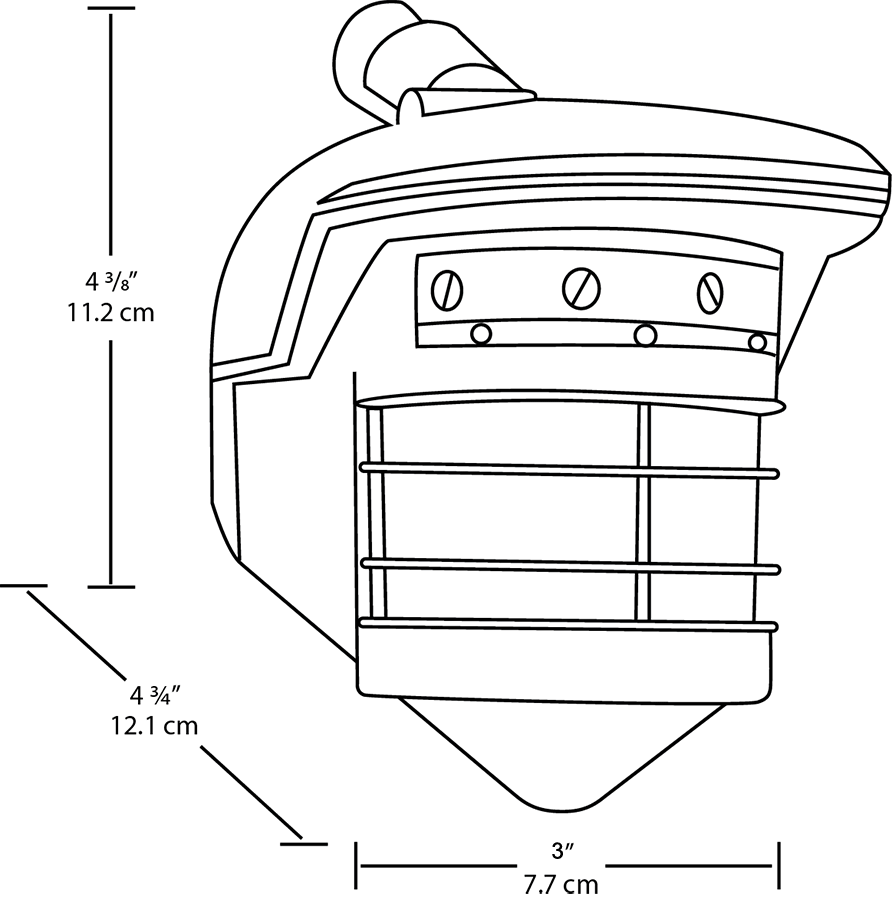

Dimensions:4-3/8 in H x 3 in W x 4-3/4 in D
Lamp Type:Incandescent
Material:Polycarbonate
Mounting Type:Fastened, Fixture
Power Rating:1000 W
Response Frequency:60 Hz
Sensor Type:Photoelectric
Time Delay:5 s to 12 min
Type:Non-Fixture Super
Viewing Angle:360 deg
Voltage Rating:120 V AC, 120 VAC
Features
| Senses 180 deg out/360 deg down for total detection |
| Radio frequency immunity |
| Color matched vandal-resistant lens and grill |
| 1000 W switching capacity |
| Protected manual override with auto-reset |
| Can be wired in parallel |
| Pre-wired and pre-assembled on CU4 universal EZ plate |
| Quick test time |
| Withstands up to 6000 VAC |
| Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed |
