STB90100L
Appleton®* Actual product may vary from image

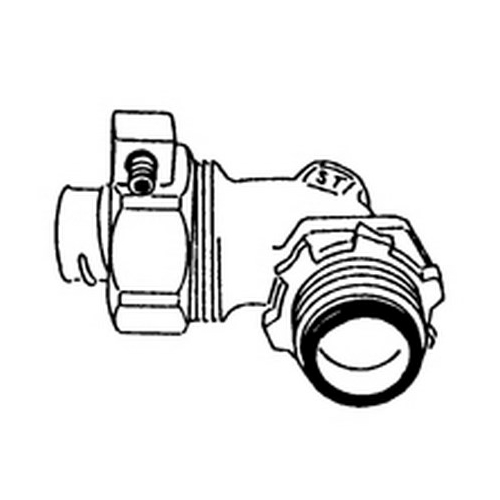

Appleton STB Series 90 DEG Liquidtight Connector, Size: 1 IN, Connection: Threaded X Compression, Conductor Range: 14 - 4 AWG, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 3/4 IN, Standard: Class I, Division 2, UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit
Details
MFG PART #:STB90100L
McMc Part #:EGSMSTB90100L
UPC #:781381403795
Inventory
$ C
Details
MFG PART #:STB90100L
McMc Part #:EGSMSTB90100L
UPC #:781381403795
Inventory
Attributes
Features
Documentation
Attributes
Brand:Appleton®
Angle:90 deg
Cable Openings:14 to 4 AWG
Country of Origin:Mexico
Dimensions:1.81 in W
Finish:Triple Coated
Material:Malleable Iron
Series:STB
Suitable For Use With:Liquid Tight Flexible Metallic Conduit
Trade Size:1 in
Type:Liquid Tight Oiltight Raintight
Features
| Unique long ferrule with more pronounced threads provides over four times UL pull out requirements |
| Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground |
| Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection |
| Full, machined tapered threads (NPT) |
| Chromate/epoxy powder coated/zinc electroplated finish |
