60102-TB
Color-Keyed®* Actual product may vary from image
Aluminum One-Hole Lug, Long Barrel, Blind End, Max 35kV, #8 AWG Wire, 1/4 Inch Bolt Size, Tin Plated, Die Code 24, Die Color Code Blue
Details
MFG PART #:60102-TB
McMc Part #:TBCO60102TB
UPC #:786210601021
Inventory
Details
MFG PART #:60102-TB
McMc Part #:TBCO60102TB
UPC #:786210601021
Inventory
Attributes
Features
Documentation
Attributes
Brand:Color-Keyed®
Barrel Size:0.28 in Dia
Barrel Type:Blind End/Long
Color:Blue
Conductor Size:8 AWG
Conductor Type:Aluminum/Copper
Die Code:24
ETIM:EC001053
Material:Aluminum
Overall Length:1.38 in
Specifications:Tin Plated
Stud Size:1/4 in
Temperature Rating:90 deg C

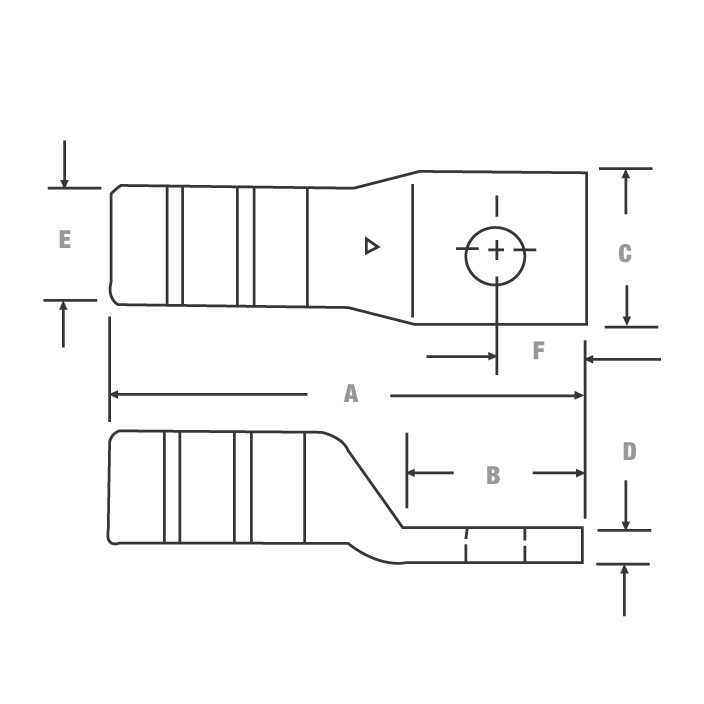

Tongue Size:0.71 in L x 0.44 in W x 0.09 in THK
Type:1-Hole Non-Insulated
Voltage Rating:35 kV
Features
| For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications |
| Easily matched to the correct Color-Keyed® installing die for positive compressions |
| Hardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous mass |
| Long compression areas ensure complete contact |
| Multiple compressions prevent creep of aluminum conductors |
| Filled with high temperature oxide inhibiting compound |
| Electro-tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistance |
| High conductivity wrought aluminum construction |
