60130
Color-Keyed®* Actual product may vary from image
Aluminum One-Hole Lug, Long Barrel, Blind End, Max 35kV, 1/0 AWG Wire, 3/8 Inch Bolt Size, Tin Plated, Die Code 50, Die Color Code Tan
Details
MFG PART #:60130
McMc Part #:TBCO60130
UPC #:786210601304
Inventory
$ C
Details
MFG PART #:60130
McMc Part #:TBCO60130
UPC #:786210601304
Inventory
Attributes
Features
Documentation
Attributes
Brand:Color-Keyed®
Barrel Size:0.62 in Dia
Barrel Type:Blind End/Long
Color:Tan
Conductor Size:1/0 AWG
Conductor Type:Aluminum/Copper
Die Code:50
ETIM:EC001051
Material:Aluminum

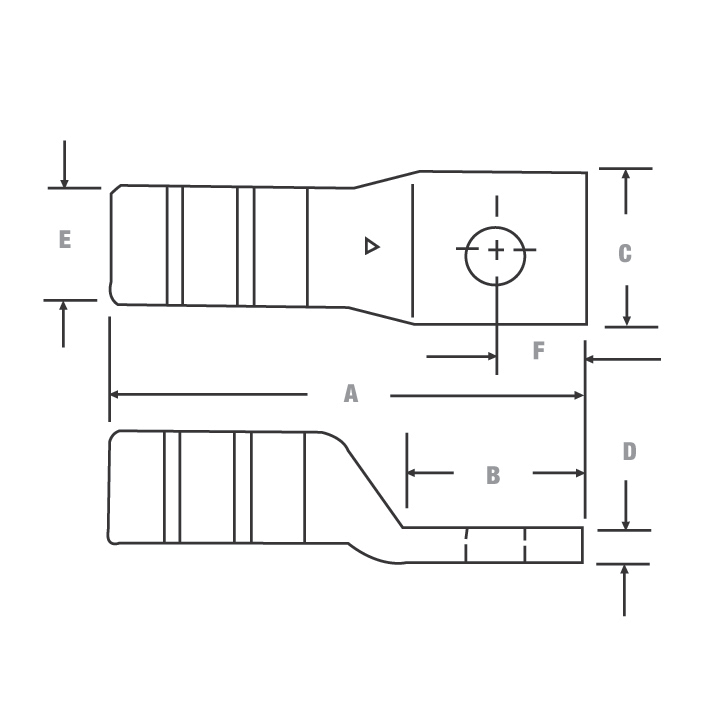

Overall Length:2.51 in
Specifications:Tin Plated
Stud Size:3/8 in
Temperature Rating:90 deg C
Tongue Size:0.97 in L x 0.88 in W x 0.19 in THK
Tongue Type:Straight
Type:1-Hole Non-Insulated
Voltage Rating:35 kV
Features
| For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications |
| Easily matched to the correct Color-Keyed® installing die for positive compressions |
| Hardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous mass |
| Long compression areas ensure complete contact |
| Multiple compressions prevent creep of aluminum conductors |
| Filled with high temperature oxide inhibiting compound |
| Electro-tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistance |
| High conductivity wrought aluminum construction |
