60171
Color-Keyed®* Actual product may vary from image
Aluminum One-Hole Lug, Long Barrel, Blind End, Max 35kV, 500 kcmil Wire, 1/2 Inch Bolt Size, Tin Plated, Die Code 99H, Die Color Code Pink.
Details
MFG PART #:60171
McMc Part #:TBCO60171
UPC #:786210601717
Inventory
$ C
Details
MFG PART #:60171
McMc Part #:TBCO60171
UPC #:786210601717
Inventory
Attributes
Features
Documentation

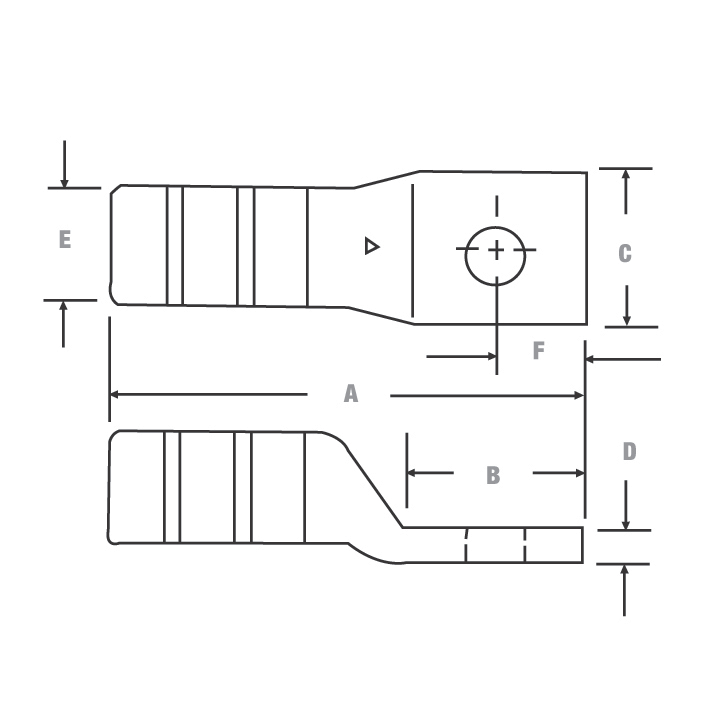

Attributes
Brand:Color-Keyed®
Barrel Size:1.28 in Dia
Barrel Type:Blind End/Long
Color:Pink
Conductor Size:500 kcmil
Conductor Type:Aluminum/Copper
Die Code:99H
ETIM:EC001051
Material:Aluminum
Overall Length:4.95 in
Specifications:Tin Plated
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:1.25 in L x 1.79 in W x 0.38 in THK
Tongue Type:Straight
Type:1-Hole Non-Insulated
Voltage Rating:35 kV
Features
| For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications |
| Easily matched to the correct Color-Keyed® installing die for positive compressions |
| Hardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous mass |
| Long compression areas ensure complete contact |
| Multiple compressions prevent creep of aluminum conductors |
| Filled with high temperature oxide inhibiting compound |
| Electro-tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistance |
| High conductivity wrought aluminum construction |
