560C9W
Leviton®* Actual product may vary from image

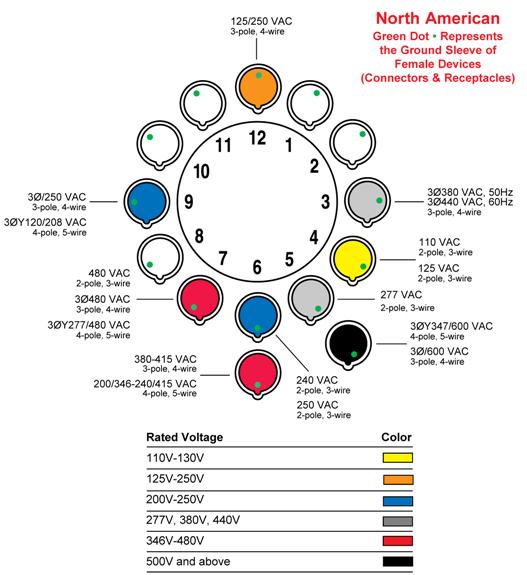

60 Amp, 120/208 Volt 3PY, IEC 309-1 & 309-2, 4P, 5W, North American Pin & Sleeve Connector, Industrial Grade, IP67, Watertight, - Blue
Details
MFG PART #:560C9W
McMc Part #:LEVI560C9W
UPC #:078477838860
Inventory
$ E
Details
MFG PART #:560C9W
McMc Part #:LEVI560C9W
UPC #:078477838860
Inventory
Attributes
Features
Documentation
Attributes
Brand:Leviton®
Amperage Rating:60 A
Color:Blue
Dimensions:4.41 in Dia x 11.26 in L
Enclosure:IP67
Frequency Rating:50/60 Hz
Grade:Industrial
Material:Valox® 357
Number of Poles:4
Number of Wires:5
Series:Series II
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Type:North American Configuration Watertight
Voltage Rating:120/208 V AC, 120/208 VAC
Features
| Rugged housing, made of superior performance PBT, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extremes and V-0 flame rated and superior UV stability |
| Watertight chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point |
| Rear terminals, raised lettering identification |
| Calibrated, self-adjusting contacts |
| Front terminals, raised lettering identification |
| Rugged housing, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extreme |
| Certified for current interrupting at full rated current |
| Contact carrier resists arcing and internal heat build up |
| Zinc-coated steel terminal screws on 20A and 30A devices |
| Dependable, clean brass construction for long life, reliable electrical contact, maximum conductivity, and corrosion resistance |
