F2045
Sta-Kon®* Actual product may vary from image
Polypropylene-Insulated Ferrule, Total Length .906 Inches/23mm, Pin Length .472 Inches/12mm, Pin Diameter .236 Inches/6mm, Base Diameter .346 Inches/8.8mm, Wire Range 6 AWG/16.00mm2, Color Blue, Copper, Tin Plated
Details
MFG PART #:F2045
McMc Part #:TBCOF2045
UPC #:786210335490
Inventory
$ C
**Must be ordered in quantities of 100**
Details
MFG PART #:F2045
McMc Part #:TBCOF2045
UPC #:786210335490
Inventory
Attributes
Features
Documentation
Attributes
Brand:Sta-Kon®
Barrel Size:0.346 in Dia
Barrel Type:Short
Color:Blue
Conductor Size:6 AWG
Conductor Type:Stranded Copper
ETIM:EC000005
Finish:TiN Coated
Length:0.906 in
Material:Copper
Series:F Series

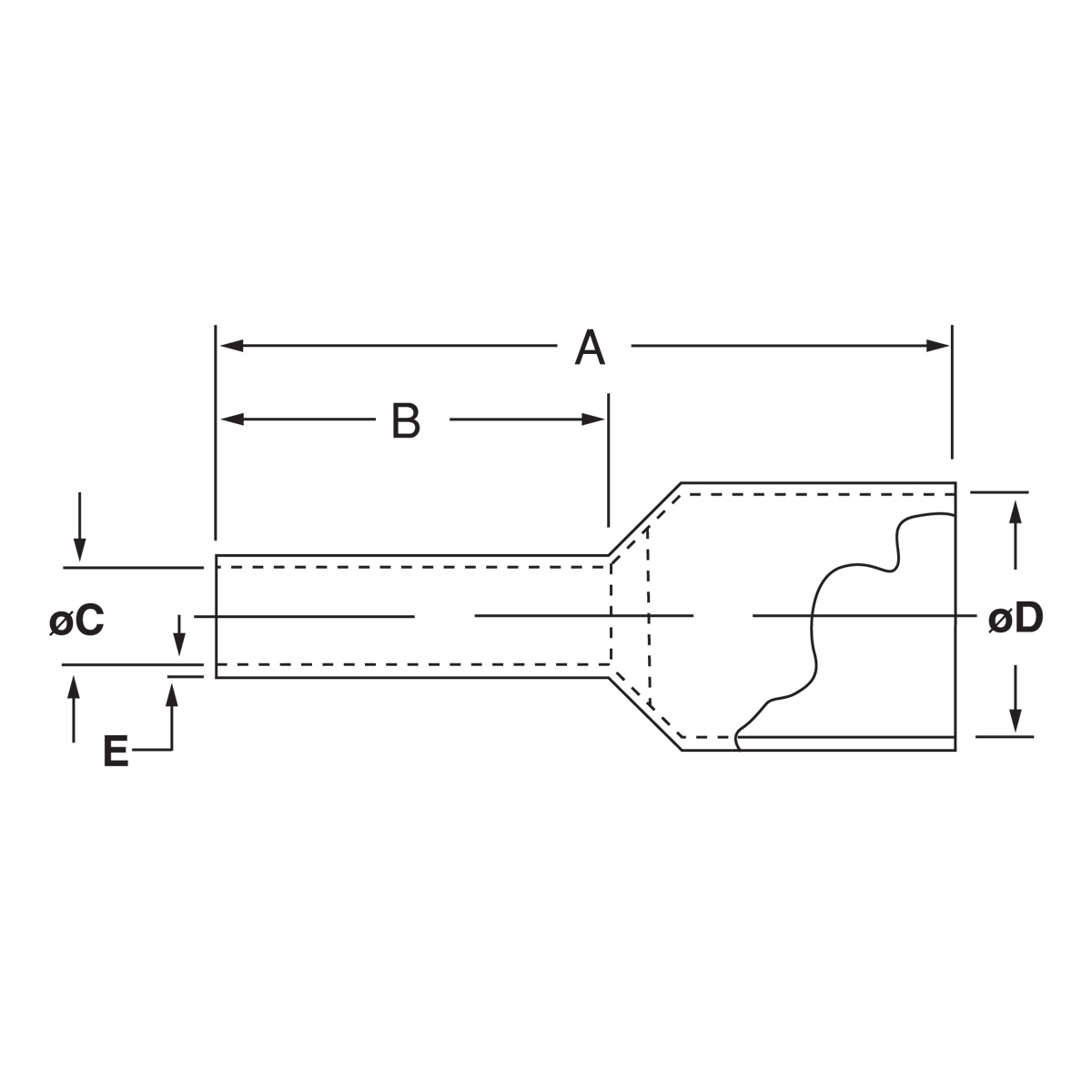

Specifications:0.236 in ID x 0.472 in L x 0.008 in THK Pin, 0.346 in Dia Base
Temperature Rating:105 deg C
Type:Insulated
Voltage Rating:300 V AC, 300 VAC
Features
| Polypropylene insulated |
| Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks |
| Made of high conductivity copper |
| Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized |
| Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp |
| Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block |
| Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires |
| Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal |
| ERG4 recommended tool |
