F8007

Sta-Kon®

* Actual product may vary from image

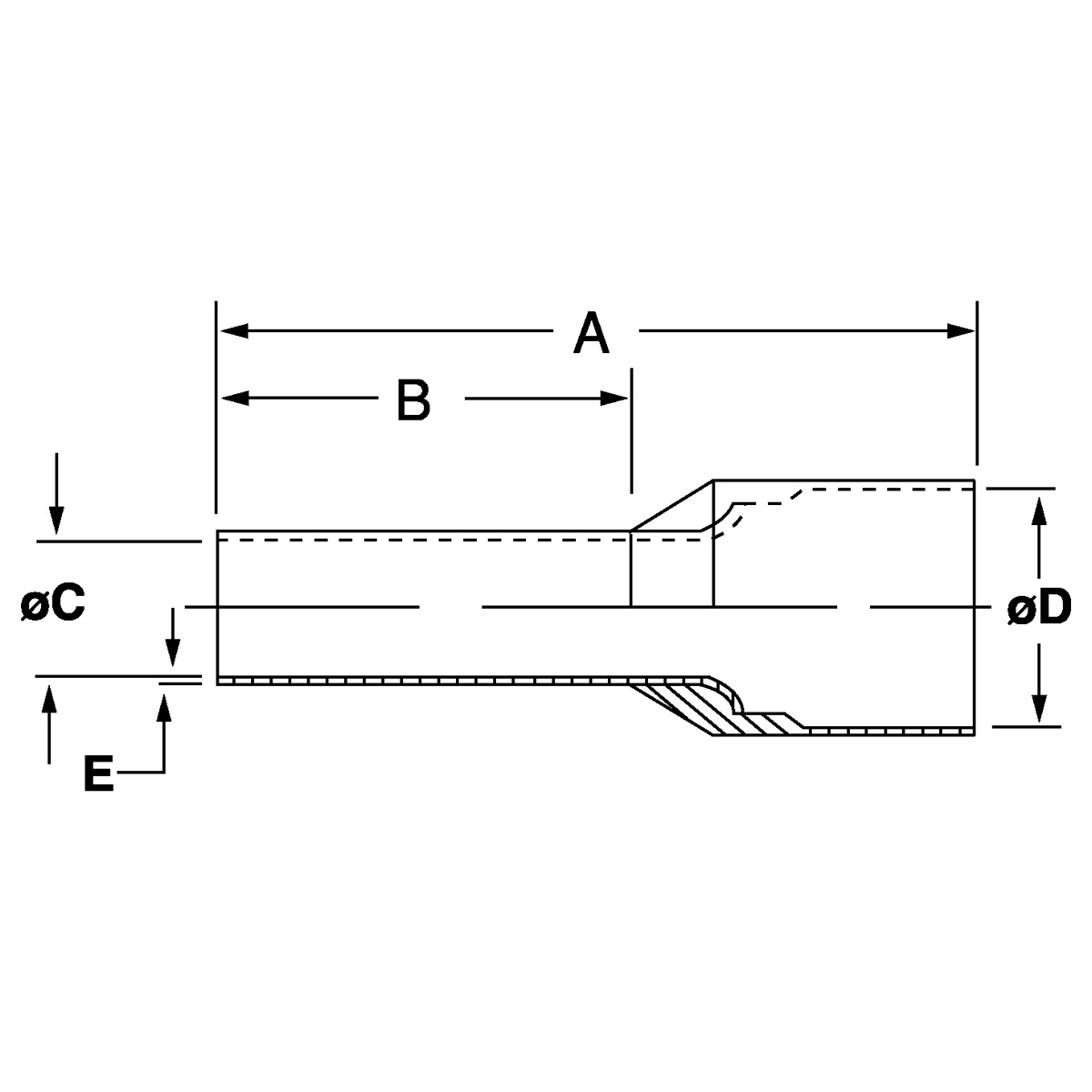

Polypropylene Insulated Twin Ferrule, Length .787 Inches/20mm, Pin Length .472 Inches/12mm, Pin Diameter .091 Inches/2.3mm, Base Diameter .252 Inches/6.4mm, Conductor Range 2x16 AWG/2x1.50mm2, Color Black, Copper, Tin Plated

Details

MFG PART #:F8007

McMc Part #:TBCOF8007

UPC #:786210335681

Inventory

$ C

Details

MFG PART #:F8007

McMc Part #:TBCOF8007

UPC #:786210335681

Inventory

Attributes

Brand:Sta-Kon®
Barrel Size:0.252 in Dia
Barrel Type:Long
Color:Black
Conductor Size:16 AWG
Conductor Type:Stranded Copper
ETIM:EC000005
Finish:TiN Coated
Length:0.787 in
Material:Copper
Series:F Series
Specifications:0.091 in ID x 0.472 in L x 0.006 in THK Pin, 0.252 in Dia Base
Temperature Rating:105 deg C
Type:Insulated
Voltage Rating:300 V AC, 300 VAC
