NW52

Sta-Kon®

* Actual product may vary from image

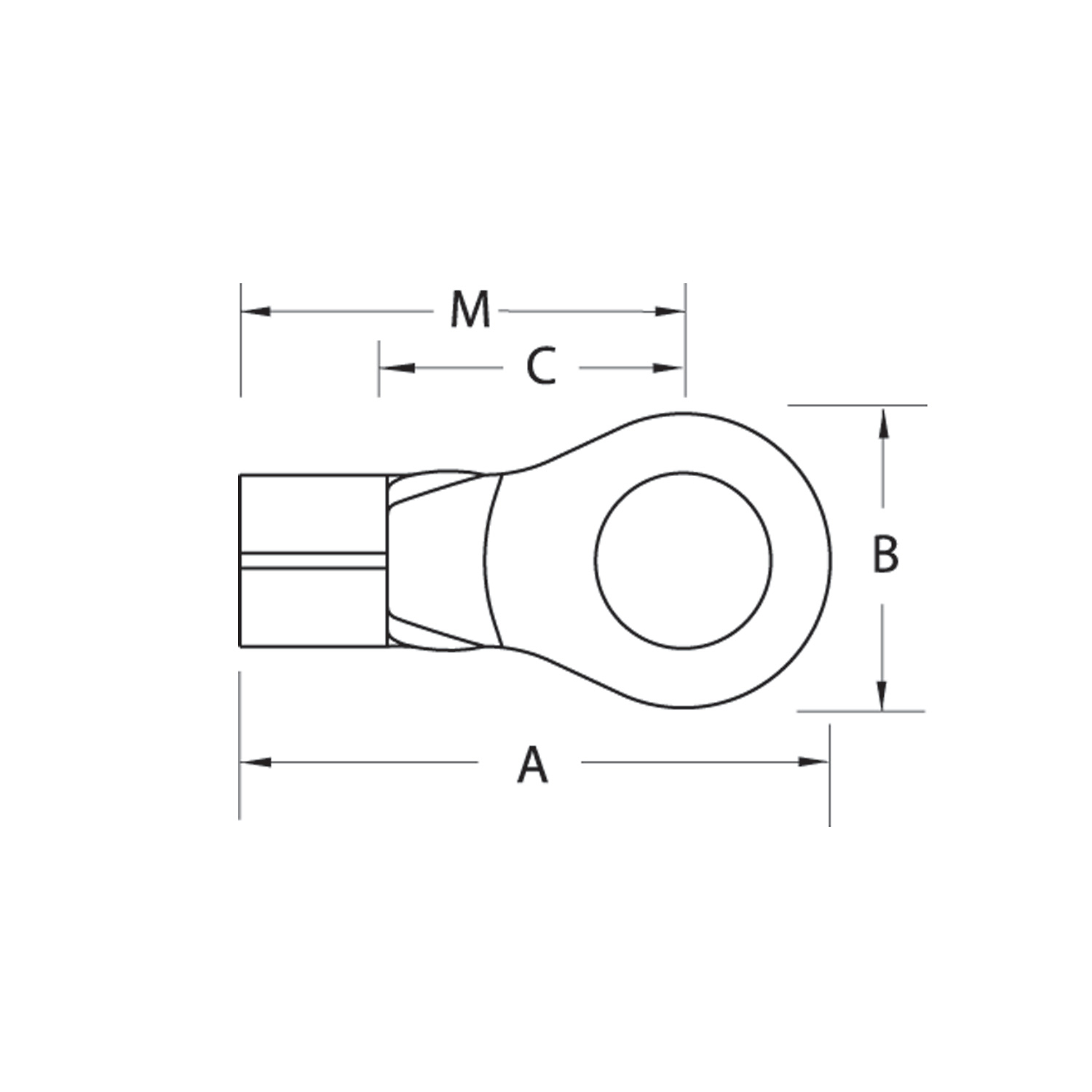

Non-Insulated High-Temperature Ring Terminal, Length .63 Inches, Width .31 Inches, Bolt Hole #10, Wire Range #20-#18 AWG, 1200 Degree Fahrenheit Maximum, Nickel Alloy, Plain Finish, 1,000 Pack

Details

MFG PART #:NW52

McMc Part #:TBCONW52

UPC #:786210816715

Inventory

$ C

Details

MFG PART #:NW52

McMc Part #:TBCONW52

UPC #:786210816715

Inventory

Attributes

Brand:Sta-Kon®
Barrel Type:Brazed Seam, Serrated
Color:Metallic
Conductor Size:20 to 18 AWG
ETIM:EC001052
Finish:Plain
Length:0.63 in
Material:Nickel Alloy
Series:NW Series
Specifications:0.28 in Clearance, Non-Insulated
Stud Size:#10
Temperature Rating:1200 deg F, 150 deg C
Tongue Size:0.31 in W, 0.31 in W x 0.04 in THK
Tongue Type:Ring
Type:High Temperature Non-Insulated, High-Temperature
Voltage Rating:600 V
