RAD18-183
Sta-Kon®* Actual product may vary from image
Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .136, Tab Size .187x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
Details
MFG PART #:RAD18-183
McMc Part #:TBCORAD18183
UPC #:786210814551
Inventory
$ C
**Must be ordered in quantities of 100**
Details
MFG PART #:RAD18-183
McMc Part #:TBCORAD18183
UPC #:786210814551
Inventory
Attributes
Features
Documentation
Attributes
Brand:Sta-Kon®
Barrel Type:Internal Serration Long
Color:Red
Conductor Size:22 to 18 AWG

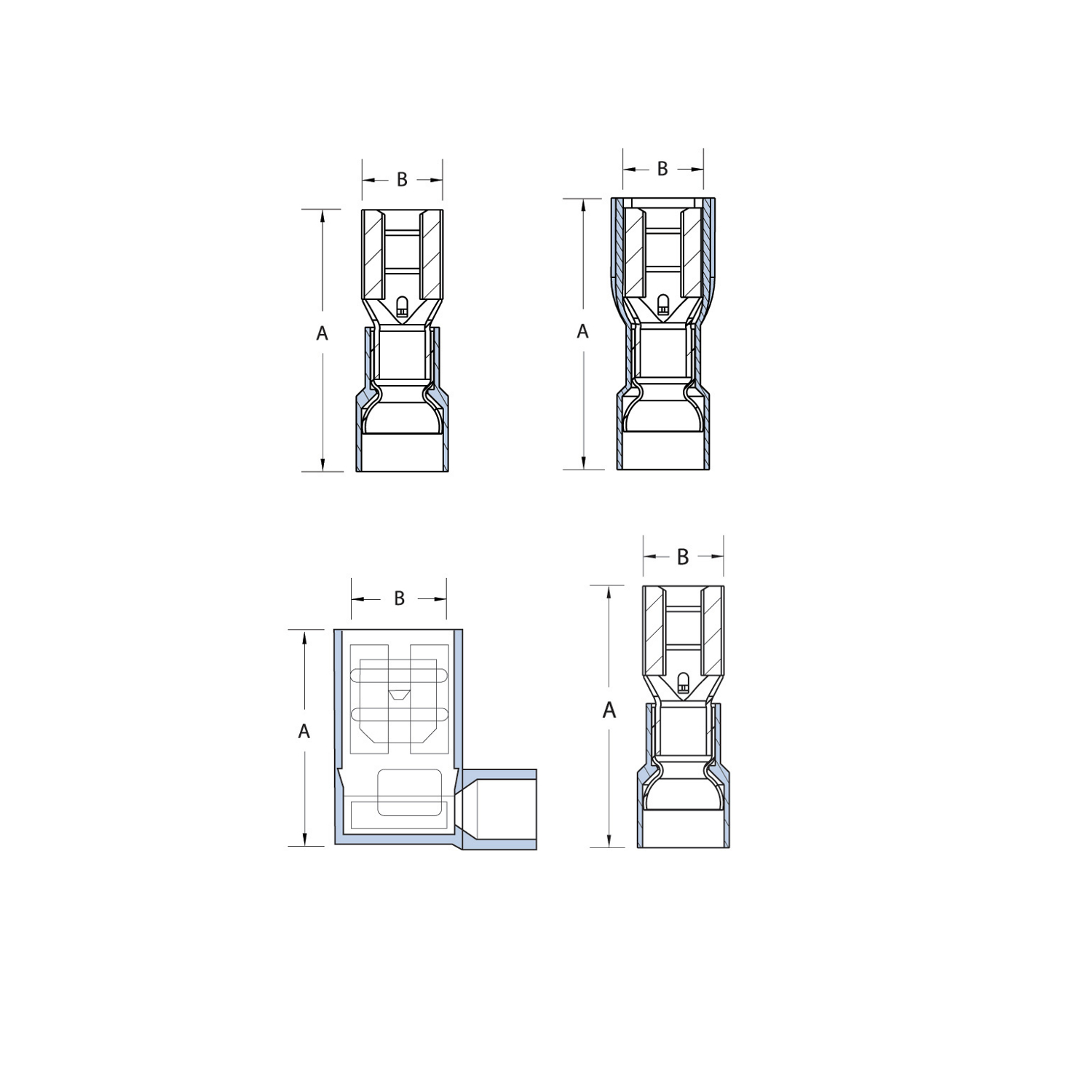

Dimensions:0.83 in L x 0.23 in W
ETIM:EC000516
Finish:Electroplated Tin
Insulated:Insulated
Material:Brass
Series:187
Specifications:0.136 in Dia Maximum Insulation, 0.03 in THK Stock
Tab Size:0.187 in W x 0.032 in THK
Temperature Rating:105 deg C
Terminal Type:Crimp
Voltage Rating:600 VAC
Features
| Nylon insulated |
| Unique construction of the female disconnect offers long term dependability |
| Funnel entry insulators enable easier inserting of wire into barrel |
| Internal barrel serrations and long barrel provide for maximum tensile strength |
| Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003, ERG4001 tools |
| Color-coded for easy installation |
| Quick, reliable method of connection to terminal blocks and boards without the use of tools |
