RB14-8X
Sta-Kon®* Actual product may vary from image

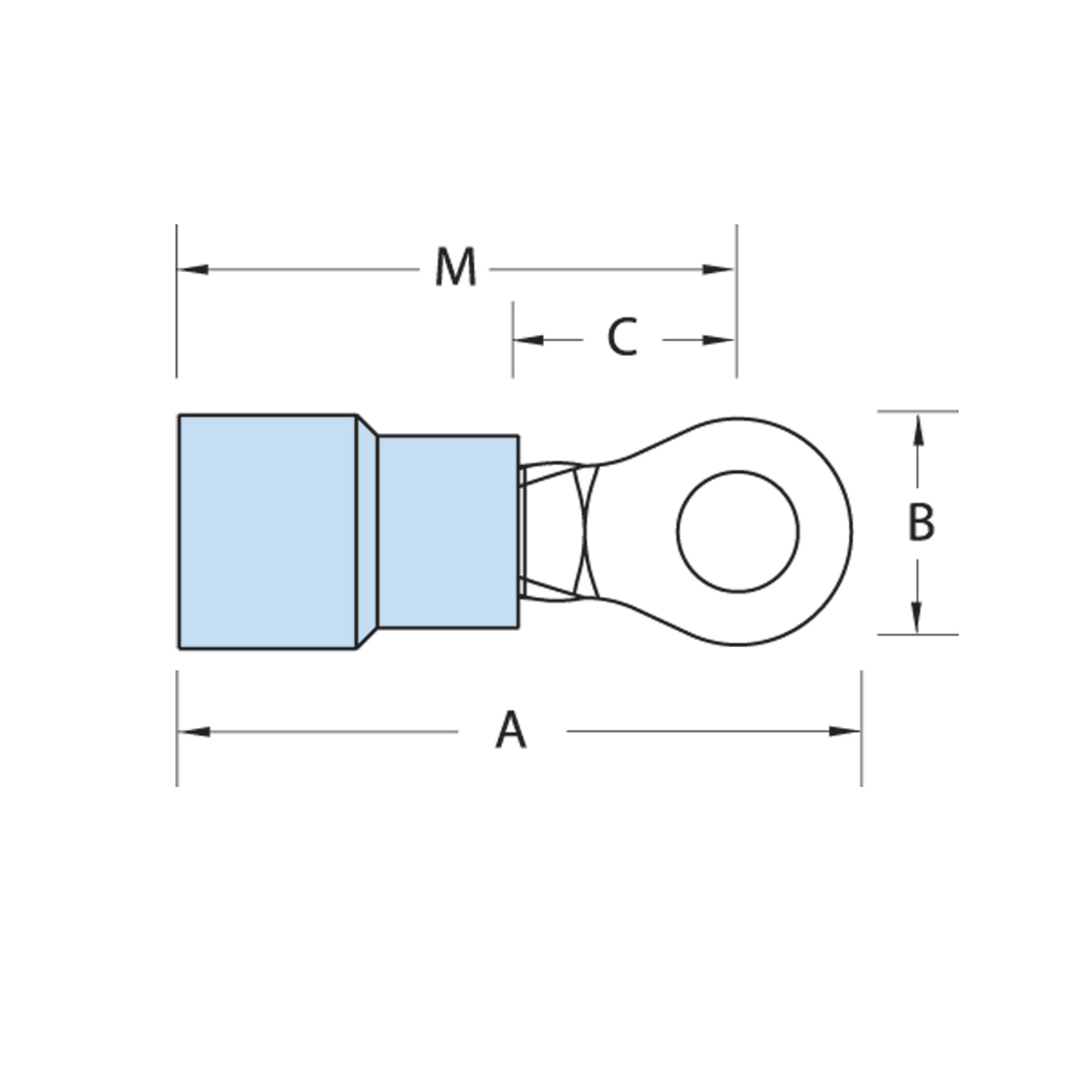

Nylon Insulated Expanded Entry Ring Terminal, Length .95 Inches, Width .31 Inches, Maximum Insulation .190, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
Details
MFG PART #:RB14-8X
McMc Part #:TBCORB148X
UPC #:786210804101
Inventory
$ C
Details
MFG PART #:RB14-8X
McMc Part #:TBCORB148X
UPC #:786210804101
Inventory
Attributes
Features
Documentation
Attributes
Brand:Sta-Kon®
Barrel Type:Insulation Grip Sleeve
Color:Blue
Conductor Size:18 to 14 AWG
ETIM:EC001052
Finish:TiN Coated
Length:0.95 in
Material:Copper
Series:RB Series
Specifications:0.19 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
Stud Size:#8
Temperature Rating:105 deg C
Tongue Size:0.31 in W x 0.03 in THK
Tongue Type:Ring
Type:Expanded Insulated
Voltage Rating:600 VAC
Features
| Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, nylon insulated, Self-insulated with high dielectric strength nylon sleeves |
| An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep |
| Made of copper and has electro-tin plating for high conductivity/corrosion resistance |
| Expanded entry |
| 100 pieces/pack |
