RB2577F
Sta-Kon®* Actual product may vary from image
Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal, Length .80 Inch, Width .72 Inch, Maximum Insulation .190, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Brass, Tin Plated, 500 Pack
Details
MFG PART #:RB2577F
McMc Part #:TBCORB2577F
UPC #:786210856810
Inventory
$ C
**Must be ordered in quantities of 500**
Details
MFG PART #:RB2577F
McMc Part #:TBCORB2577F
UPC #:786210856810
Inventory
Attributes
Features
Documentation
Attributes
Brand:Sta-Kon®
Barrel Type:Brazed Seam
Color:Blue
Conductor Size:16 to 14 AWG

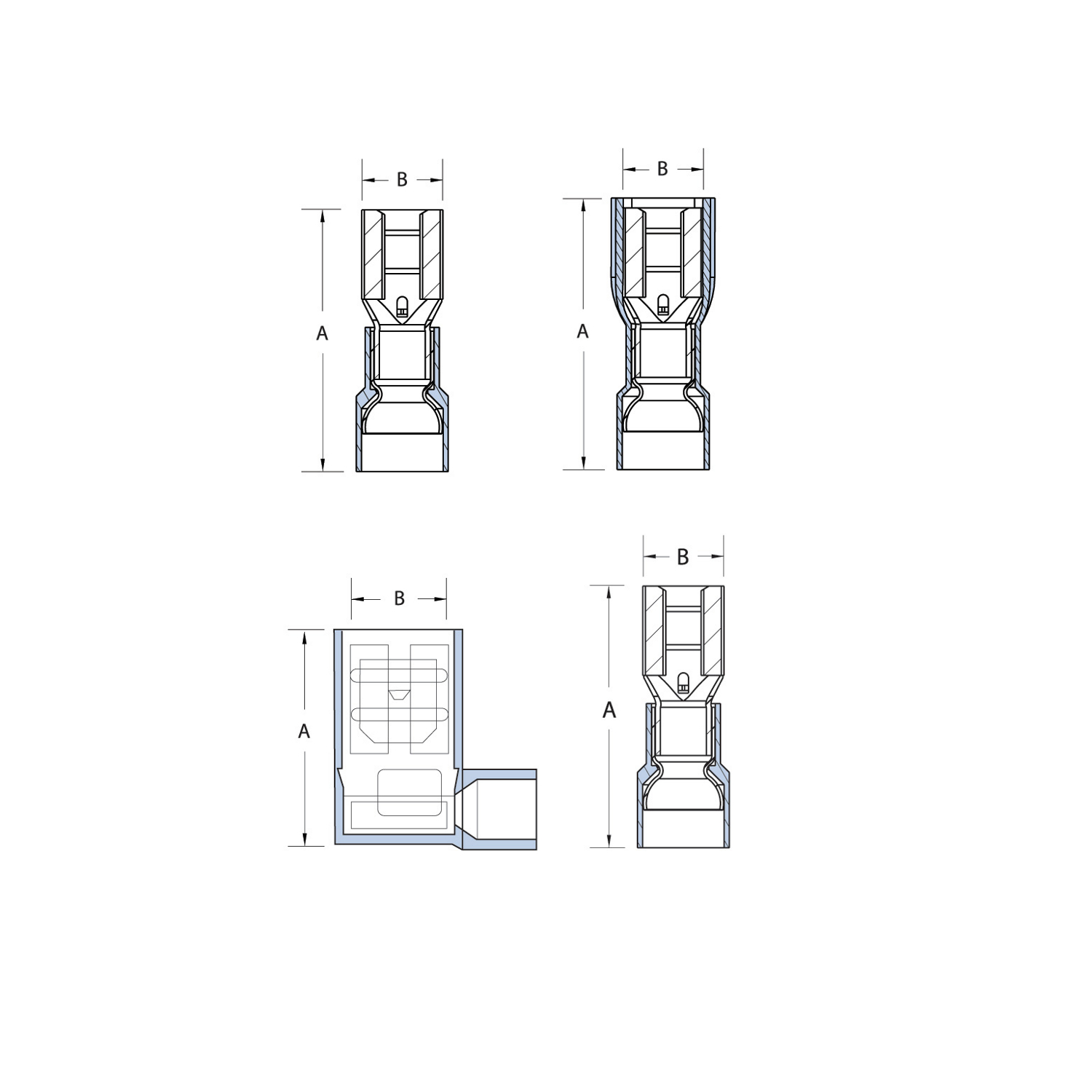

Dimensions:0.8 in L x 0.72 in W
ETIM:EC000516
Finish:Electroplated Tin
Insulated:Insulated
Material:Brass
Series:250
Specifications:0.19 in Dia Maximum Insulation
Tab Size:0.25 in W x 0.032 in THK
Temperature Rating:105 deg C
Terminal Type:Crimp
Type:90 deg Flag Open Top
Voltage Rating:600 VAC
Features
| Nylon insulated |
| Unique construction of the female disconnect offers long term dependability |
| Funnel entry insulators enable easier inserting of wire into barrel |
| Brazed seam serrated barrel provides maximum tensile strength |
| Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools |
| Color-coded for easy installation |
| Complete line of installing tools engineered to match tool with terminal |
