703 2 EG
Superstrut®* Actual product may vary from image

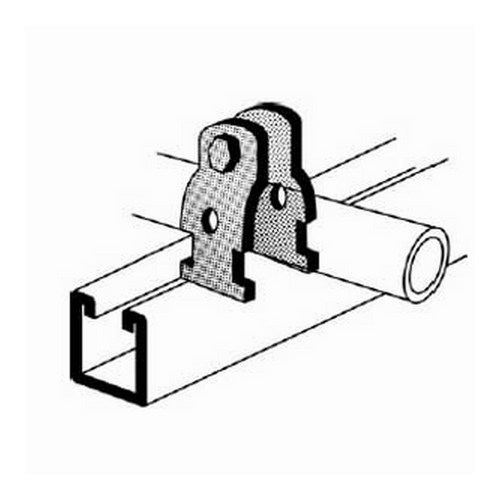

Clamp, Universal, 14 Gauge, Size 2 Inch, Pipe Outer Diameter 2.195 Inches - 2.375 Inches, Electro-Galvanized Steel, For use with Rigid or IMC Conduit, Pipe and Electrical Metal Tubing
Details
MFG PART #:703 2 EG
McMc Part #:TBCO7032EG
UPC #:616013143711
Inventory
$ C
Details
MFG PART #:703 2 EG
McMc Part #:TBCO7032EG
UPC #:616013143711
Inventory
Attributes
Features
Documentation
Attributes
Brand:Superstrut®
Conduit Size:2 in
ETIM:EC002470
Finish:Electro Galvanized/Silver Galv®, Electro-Galvanized/Silver Galvanized
Load Capacity:800 lb
Material:Steel
Mounting Type:Channel
Outside Diameter:2.195 to 2.375 in
Series:703
Suitable For Use With:EMT, Rigid, IMC Conduit, Pipes and Cable
Thickness:14 ga
Type:Universal
Features
| Bolt head is combination slot and hex head for flexibility of attachment |
| Square nut is captivated on the shoulder for easy one-handed tightening |
| Straps are interchangeable with 1-1/2 in strut, for broader application |
| Straps are shipped assembled so counting and sorting are easier |
| Pipe or conduit sizes are shown on the strap for easy identification |
| Individually assembled with screw and nut |
| Designed to be twist inserted anywhere along the slot side of the channel |
